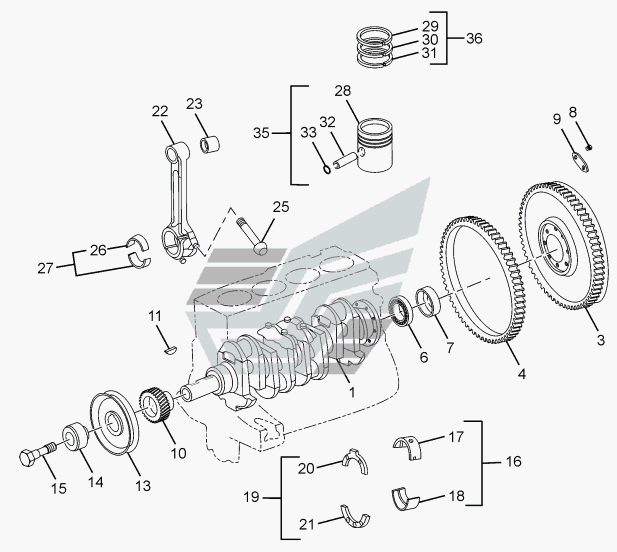

MOVING PARTS SFC 407 LHD Euro II. Каталог 2009г.

PIN MAIN BEARING SET

KIT, CRANSHAFT SEALING RING HALF CONSISTING OF

SEALING RING HALF

CYLINDRICAL PIN

SPACER (OIL SLINGER)

OIL SLINGER

CRANKSHAFT STD (INTEGRAL)

ASSY. FLYWHEEL WITH RING GEAR

RING GEAR

BALL BEARING

LOCKING RING (IN CRANKSHAFT TO FIX THE BEARING)

BOLT

LOCKING PLATE

CRANK SHAFT GEAR

WOODRUFF KEY 8X13

PULLEY-CRANKSHAFT

THRUST SPACER

LOCK (V. DAMPER)

SET OF MAIN BEARING W/O THRUST WASHER STD CONSISTING OF :

SET OF MAIN BEARING W/O THRUST WASHER RS I CONSISTING OF :

SET OF MAIN BEARING W/O THRUST WASHER RS II CONSISTING OF :

SET OF MAIN BEARING W/O THRUST WASHER RS IV CONSISTING OF :

SET OF MAIN BEARING W/O THRUST WASHER RS III CONSISTING OF :

MAIN BEARING UPPER RS IV

MAIN BEARING UPPER RS III

MAIN BEARING UPPER RS I

MAIN BEARING UPPER STD

MAIN BEARING UPPER RS II

MAIN BEARING LOWER STD

MAIN BEARING LOWER RS IV

MAIN BEARING LOWER RS III

MAIN BEARING LOWERRS II

SET OF THRUST WASHER STD CONSISTING OF

SET OF THRUST WASHER RS I CONSISTING OF

SET OF THRUST WASHER RS II CONSISTING OF

THRUST WASHER UPPER HALF STD

THRUST WASHER UPPER HALF RS I

THRUST WASHER UPPER HALF RS II

THRUST WASHER LOWER HALF RS II PISTON AND RING SET

THRUST WASHER LOWER HALF STD

THRUST WASHER LOWER HALF RS I

ASSY. CONNECTING ROD W/O BEARING

CON ROD BUSH

CON ROD BUSH SET STD CONSISTING OF :

CONNECTING ROD BOLT (FULLY THREADED) CONNECTING ROD BEARINGS

CON ROD BEARING RS III

CON ROD BEARING RS IV

CON ROD BEARING RS II

CON ROD BEARING RS I

CON ROD BEARING STD

CON ROD BEARING SET RS IV CONSISTING OF

CON ROD BEARING SET STD CONSISTING OF

CON ROD BEARING SET RS I CONSISTING OF

CON ROD BEARING SET RS III CONSISTING OF

CON ROD BEARING SET RS II CONSISTING OF

PISTON STD

PISTON (STD-I DIA 96.900)M/s GIL BS-II

DOUBLE TRAPEZE RING GR I

INTER.STEPPED KEYSTONE RING TOP

INTER STEPPED COMPRESSION RING

NAPIER RING GR II

ASSY.OIL CONTROL RING GROOVE III CONNECTING ROD

ASSY. OIL CONTROL RING

PISTON PIN

CIRCLIP

SET OF BARE PISTON :(ESCORTS) CONSISTS OF

SET OF BARE PISTON 4SPTC STD EURO I & II (SLIPPER) CONSISTING OF :

SET OF BARE PISTON 4SPTC STD EURO I & II (NON SLIPPER) CONSISTING OF :

SET OF PISTON RINGS STD 4SPTC / 497TC EURO I & II CONSISTING OF :

SET OF PISTON RING (GOETZE):4SP BS:II CONSISTS OF:
