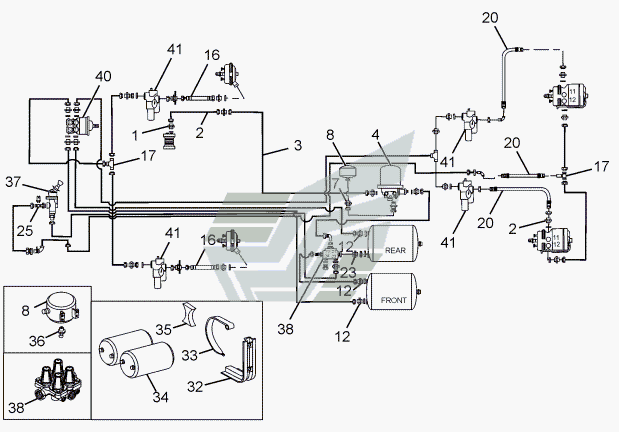

AIR LINES LPT 613 LHD EURO II. Каталог 2009г.

ASSY.NYLON PIPE SET

T SOCKET (ON FRONT BRAKE CHAMBER)

BRACKET-MODULATOR VALVE MTG. REAR

BRACKET-MODULATOR VALVE MTG.-FRONT.

PIN

PRESSURE TEST CONNECTOR, (FOR STD FITTING)

"3/8"" HOSE 630 LG (MODULATOR VALVE TO REAR BRAKE CHAMBER)"

ASSY. BRACKET RH (AIR DRIER)

COUPLING BODY M 20X22 (ON COMPRESSOR)

ASSY, TUBE WITH CRIMPED HOSE (1ST PIPE FROM COMPRESSOR)

ASSY, TUBE (2 ND PIPE FROM COMPRESSOR)

ASSY, TUBE (3 RD PIPE FROM COMPRESSOR)

AIR DRIER WITH 24V HEATER, SILENCER

DOUBLE SOCKET (ON PURGE TANK)

PURGE TANK

ASSY. HOSE ( FRONT BRAKE CHAMBER LH/RH)

TEE, SOCKET (REAR BRAKE)

ASSY. HOSE 3/8 “ (REAR BRAKE)

SOCKET (ON PORT 23/24 OF SYSTEM PROTECTION VALVE)

T SOCKET (ON HAND BRAKE VALVE)

ASSY. SUPPORT (AIR TANK)

ASSY. STRAP

ASSY, AIR TANK

SPACER BLOCK

WATER DRAIN VALVE

REPAIR KIT (SCL) MINOR CONSISTS OF :

SYSTEM PROTECTION VALVE

SYSTEM PROTECTION VALVE (SCL), STD FITTING

DUAL BRAKE VALVE (KNORR BREMSE), FOR STD FITTING

MADULATOR VALVE 24V

MADULATOR VALVE 24V
